Round cases › Plain

  • Plastic: DAP, black ("TP" after part number indicates thermoplastic)
  • Asterisk * indicates case is available, but not listed in Catalog EC2
  • Tolerances  |  Sort by part number

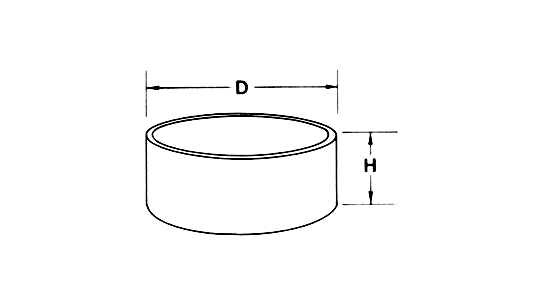

D H 2X WALL PART #
.100 .215 .010 2-0100
.100 .265 .010 2-0101
.100 .295 .010 2-0102
.105 .265 .010 2-0325
.105 .295 .010 2-0326
.110 .310 .010 2-0104
.110 1.200 .010 2-0644*
.113 .253 .010 2-0619
.120 .370 .010 2-0105
.125 .250 .010 2-0106
.125 .375 .010 2-0107
.125 .500 .010 2-0108
.140 .380 .012 2-0329
.145 1.650 .020 2-0643*
.147 .240 .010 2-0634
.150 .250 .010 2-0109
.150 1.000 .010 2-0330
.155 .310 .010 2-0110
.155 .375 .012 2-0111
.155 .400 .012 2-0331
.155 .500 .012 2-0112
.160 .850 .012 2-0334
.170 .650 .012 2-0617
.170 .750 .012 2-0630
.170 .850 .012 2-0631
.180 .930 .020 2-0618
.187 .375 .012 2-0113
.187 .500 .012 2-0114
.200 .375 .017 2-0632
.200 .600 .020 2-0335
.200 .850 .020 2-0641*
.200 1.750 .020 2-0628
.217 .078 .015 2-0612
.220 .040 .013 2-0613
.225 .375 .015 2-0115
.250 .190 .015 2-0337
.250 .250 .020 2-0116
.250 .350 .020 2-0117
.250 .375 .020 2-0118
.250 .500 .020 2-0119
.250 .625 .020 2-0120
.250 .750 .020 2-0121
.250 .875 .020 2-0620
.250 1.000 .020 2-0122
.250 1.500 .020 2-0623
.250 1.750 .020 2-0642*
.275 .115 .015 2-0123
.275 .335 .015 2-0124
.290 .375 .017 2-0125
.295 .315 .015 2-0616
.300 .375 .017 2-0126
.300 .500 .020 2-0127
.300 .750 .020 2-0128
.300 1.000 .020 2-0648*
.300 1.750 .020 2-0625
.310 .152 .015 2-0129
.340 .187 .020 2-0130
.340 .190 .010 2-0340
.340 .375 .020 2-0341
.350 .050 .027 2-0615
.350 .375 .020 2-0131
.350 1.750 .020 2-0626
.360 .320 .020 2-0132
.365 .220 .025 2-0538
.365 .250 .020 2-0342
.365 .335 .020 2-0133
.375 .375 .020 2-0134
.375 .500 .020 2-0135
.375 .625 .020 2-0136
.375 .710 .020 2-0137
.375 1.000 .025 2-0138
.375 1.250 .025 2-0139
.380 .780 .025 2-0345
.395 .490 .020 2-0140
.395 .740 .020 2-0141
.400 .290 .020 2-0347
.400 .300 .020 2-0142
.400 .380 .020 2-0143
.400 .500 .020 2-0144
.400 1.000 .020 2-0649*
.400 1.750 .020 2-0627
.415 .375 .020 2-0145
.420 .250 .015 2-0146
.435 1.000 .030 2-0348
.440 .460 .020 2-0350
.440 .530 .020 2-0147
.445 .375 .020 2-0148
.445 .460 .020 2-0149
.450 .255 .020 2-0150
.450 .305 .025 2-0151
.450 1.750 .025 2-0624
.455 .255 .025 2-0352
.460 .500 .020 2-0353
.470 .490 .020 2-0153
.480 .370 .020 2-0354
.495 1.500 .030 2-0154
.500 .250 .020 2-0155
.500 .300 .030 2-0156
.500 .475 .030 2-0355
.500 .500 .025 2-0157
.500 .500 .030 2-0638*
.500 .550 .025 2-0158
.500 .625 .025 2-0159
.500 .750 .030 2-0160
.500 1.000 .030 2-0161
.500 1.250 .030 2-0162
.500 1.500 .030 2-0163
.500 1.750 .025 2-0647*
.500 1.950 .030 2-0359
.500 2.000 .030 2-0164
.520 .370 .020 2-0165
.520 .490 .025 2-0166
.520 .530 .020 2-0360
.530 .590 .025 2-0167
.535 .375 .025 2-0168
.545 .440 .025 2-0169
.550 .305 .025 2-0170
.555 .520 .030 2-0361
.560 .340 .025 2-0362
.560 .370 .030 2-0363
.560 .510 .030 2-0364
.560 .625 .030 2-0365
.560 1.000 .030 2-0367
.565 .875 .025 2-0171
.570 .375 .025 2-0172
.570 .600 .030 2-0368
.570 1.060 .020 2-0173
.590 .900 .020 2-0174
.600 .300 .020 2-0175
.600 .500 .020 2-0176
.600 .500 .035 2-0639*
.600 .750 .030 2-0177
.625 .300 .030 2-0371
.625 .320 .025 2-0179
.625 .390 .025 2-0373
.625 .500 .025 2-0180
.625 .540 .025 2-0374
.625 .625 .025 2-0181
.625 .750 .025 2-0182
.625 .875 .025 2-0183
.625 1.000 .025 2-0184
.625 1.250 .030 2-0185
.625 2.000 .030 2-0187
.640 .300 .025 2-0189
.640 .720 .025 2-0190
.640 .875 .025 2-0191
.645 .490 .025 2-0192
.650 .740 .025 2-0193
.670 .460 .025 2-0375
.670 .850 .025 2-0194
.670 1.125 .025 2-0376
.680 .580 .025 2-0377
.685 .380 .025 2-0195
.685 .440 .025 2-0196
.685 .465 .025 2-0197
.685 1.000 .025 2-0198
.690 .350 .025 2-0378
.690 .405 .025 2-0379
.690 .420 .020 2-0199
.690 .600 .030 2-0381
.690 1.000 .030 2-0382
.700 .330 .030 2-0384
.700 .420 .025 2-0385
.700 .470 .025 2-0386
.700 .500 .035 2-0640*
.700 .680 .030 2-0200
.710 .440 .025 2-0201
.710 1.000 .025 2-0202
.730 .625 .030 2-0388
.735 .375 .025 2-0389
.740 .485 .020 2-0390
.745 .365 .030 2-0614
.745 .625 .030 2-0204
.745 .715 .020 2-0205
.750 .375 .030 2-0206
.750 .380 .030 2-0391
.750 .400 .025 2-0392
.750 .420 .030 2-0207
.750 .450 .025 2-0393
.750 .500 .025 2-0208
.750 .545 .025 2-0395
.750 .560 .030 2-0396
.750 .620 .035 2-0398
.750 .750 .025 2-0210
.750 .850 .035 2-0399
.750 .875 .030 2-0211
.750 1.000 .030 2-0212
.750 1.250 .030 2-0213
.750 1.500 .030 2-0214
.750 2.000 .030 2-0215
.760 .315 .030 2-0400
.760 .565 .030 2-0401
.760 .650 .030 2-0402
.770 .545 .030 2-0404
.780 .375 .025 2-0405
.780 .490 .025 2-0217
.780 .740 .025 2-0216
.800 .500 .025 2-0218
.810 1.000 .035 2-0406
.820 .800 .030 2-0219
.820 1.000 .030 2-0220
.840 1.000 .030 2-0407
.860 .385 .025 2-0221
.860 .610 .030 2-0408
.860 .750 .030 2-0409
.870 .440 .025 2-0411
.870 .600 .030 2-0412
.870 .900 .025 2-0222
.875 .375 .030 2-0223
.875 .470 .030 2-0413
.875 .500 .030 2-0414
.875 .590 .030 2-0415
.875 .750 .030 2-0224
.875 .875 .030 2-0416
.875 1.000 .030 2-0225
.875 2.500 .050 2-0417
.880 .490 .030 2-0226
.890 .575 .030 2-0418
.890 1.000 .030 2-0227
.900 .400 .030 2-0228
.920 .430 .025 2-0419
.920 .485 .025 2-0229
.940 .495 .030 2-0635
.940 1.000 .035 2-0420
.960 2.500 .040 2-0230
.980 .750 .030 2-0421
.990 .435 .025 2-0607
.990 .500 .025 2-0231
.990 .990 .030 2-0422
.995 .500 .030 2-0232
.995 .750 .030 2-0233
.995 1.000 .030 2-0234
.995 1.250 .030 2-0235
1.000 .375 .030 2-0621
1.000 .375 .060 2-0424
1.000 .400 .030 2-0236
1.000 .435 .030 2-0425
1.000 .500 .030 2-0237
1.000 .560 .030 2-0238
1.000 .600 .035 2-0427
1.000 .625 .045 2-0428
1.000 .750 .030 2-0239
1.000 .950 .035 2-0429
1.000 1.000 .030 2-0240
1.000 1.500 .050 2-0636*
1.000 2.500 .050 2-0430
1.010 .400 .030 2-0431
1.010 1.250 .030 2-0241
1.025 .790 .030 2-0536
1.030 .490 .030 2-0242
1.030 .720 .030 2-0243
1.030 .990 .030 2-0244
1.050 1.000 .035 2-0434
1.060 .130 .030 2-0544
1.060 .380 .030 2-0245
1.060 .500 .030 2-0247
1.060 .535 .035 2-0436
1.060 .710 .030 2-0629
1.060 .800 .030 2-0440
1.060 .875 .030 2-0248
1.060 1.060 .030 2-0249
1.060 2.150 .035 2-0439
1.065 .380 .030 2-0441
1.065 .550 .030 2-0250
1.070 .485 .030 2-0442
1.070 .715 .030 2-0443
1.070 .750 .030 2-0251
1.080 1.250 .030 2-0252
1.100 .875 .030 2-0253
1.125 .500 .030 2-0255
1.125 .593 .030 2-0445
1.125 .625 .030 2-0256
1.125 .750 .035 2-0446
1.125 1.000 .035 2-0447
1.125 1.125 .030 2-0257
1.125 1.250 .030 2-0258
1.150 .560 .035 2-0448
1.150 1.000 .035 2-0449
1.180 .750 .035 2-0450
1.190 .590 .035 2-0451
1.190 .750 .030 2-0259
1.190 1.000 .035 2-0452
1.200 .440 .040 2-0650*
1.200 .690 .030 2-0260
1.230 .540 .030 2-0261
1.230 1.060 .030 2-0454
1.240 .540 .030 2-0455
1.240 .710 .030 2-0456
1.240 .875 .030 2-0457
1.240 1.060 .030 2-0262
1.240 3.000 .060 2-0458
1.250 .535 .030 2-0263
1.250 .550 .030 2-0460
1.250 .600 .035 2-0461
1.250 .625 .035 2-0264
1.250 .675 .030 2-0462
1.250 .700 .035 2-0265
1.250 .800 .040 2-0463
1.250 1.000 .040 2-0464
1.250 1.190 .035 2-0465
1.250 1.250 .035 2-0266
1.250 2.150 .050 2-0467
1.270 .730 .035 2-0267
1.290 1.250 .030 2-0468
1.300 .600 .030 2-0268
1.300 .725 .035 2-0269
1.300 .730 .030 2-0469
1.310 .740 .035 2-0470
1.310 1.000 .035 2-0471
1.310 1.250 .035 2-0270
1.340 .390 .035 2-0637*
1.340 .620 .035 2-0271
1.350 .600 .035 2-0272
1.360 .750 .030 2-0472
1.360 .950 .035 2-0473
1.370 .780 .035 2-0474
1.375 .500 .030 2-0273
1.375 .650 .030 2-0274
1.375 .720 .030 2-0275
1.375 .750 .035 2-0276
1.375 .910 .030 2-0475
1.375 1.000 .040 2-0476
1.375 1.375 .035 2-0277
1.375 1.500 .035 2-0278
1.400 1.000 .035 2-0477
1.400 1.125 .030 2-0478
1.400 1.500 .035 2-0279
1.400 1.750 .035 2-0280
1.430 1.125 .035 2-0281
1.450 1.000 .040 2-0479
1.480 .690 .035 2-0282
1.480 1.500 .030 2-0480
1.500 .625 .035 2-0285
1.500 .700 .035 2-0286
1.500 .750 .035 2-0481
1.500 .900 .035 2-0483
1.500 1.000 .035 2-0287
1.500 1.500 .035 2-0283
1.500 1.600 .035 2-0288
1.525 1.450 .035 2-0484
1.550 1.000 .040 2-0485
1.600 .520 .030 2-0487
1.600 .875 .035 2-0489
1.625 .500 .035 2-0289
1.625 .740 .040 2-0290
1.625 1.000 .040 2-0493
1.625 1.500 .035 2-0291
1.625 1.625 .035 2-0292
1.650 1.750 .040 2-0495
1.700 .740 .025 2-0611
1.700 .750 .040 2-0496
1.700 .980 .035 2-0293
1.725 .690 .030 2-0499
1.725 1.000 .030 2-0501
1.725 1.750 .030 2-0498
1.750 .610 .035 2-0294
1.750 .750 .035 2-0502
1.750 1.000 .035 2-0295
1.750 1.750 .035 2-0296
1.750 2.000 .040 2-0297
1.800 1.000 .040 2-0504
1.800 1.300 .040 2-0505
1.875 .790 .050 2-0507
1.875 1.875 .040 2-0298
1.900 1.060 .040 2-0299
1.900 2.000 .040 2-0300
1.925 1.090 .040 2-0509
1.950 .800 .040 2-0511
1.950 2.000 .040 2-0510
2.000 .800 .035 2-0302
2.000 .875 .040 2-0303
2.000 1.000 .040 2-0301
2.000 1.250 .040 2-0305
2.000 1.500 .040 2-0306
2.000 2.000 .040 2-0307
2.125 .750 .040 2-0514
2.125 1.180 .040 2-0515
2.125 1.280 .050 2-0308
2.125 2.500 .040 2-0517
2.150 2.500 .040 2-0518
2.225 2.500 .060 2-0519
2.250 1.000 .060 2-0646*
2.250 2.500 .060 2-0309
2.375 1.250 .050 2-0310
2.400 1.100 .050 2-0521
2.425 2.500 .050 2-0311
2.450 2.500 .040 2-0522
2.500 .800 .050 2-0541
2.500 1.000 .060 2-0313
2.500 1.245 .045 2-0543
2.500 1.500 .050 2-0312
2.500 2.025 .040 2-0523
2.500 2.500 .050 2-0315
2.500 3.000 .060 2-0524
2.650 3.000 .060 2-0526
2.750 1.000 .060 2-0317
2.750 1.250 .060 2-0529
2.750 1.375 .050 2-0530
2.750 2.000 .075 2-0527
2.750 3.000 .060 2-0528
2.850 1.200 .060 2-0534
2.985 1.160 .050 2-0645*
2.985 1.370 .050 2-0633
3.000 1.170 .060 2-0531
3.000 1.500 .060 2-0320
3.000 2.000 .060 2-0321
3.100 1.380 .050 2-0532
3.250 .440 .060 2-0651*
3.300 .475 .060 2-0535
3.500 1.375 .050 2-0622
3.750 1.250 .060 2-0608
